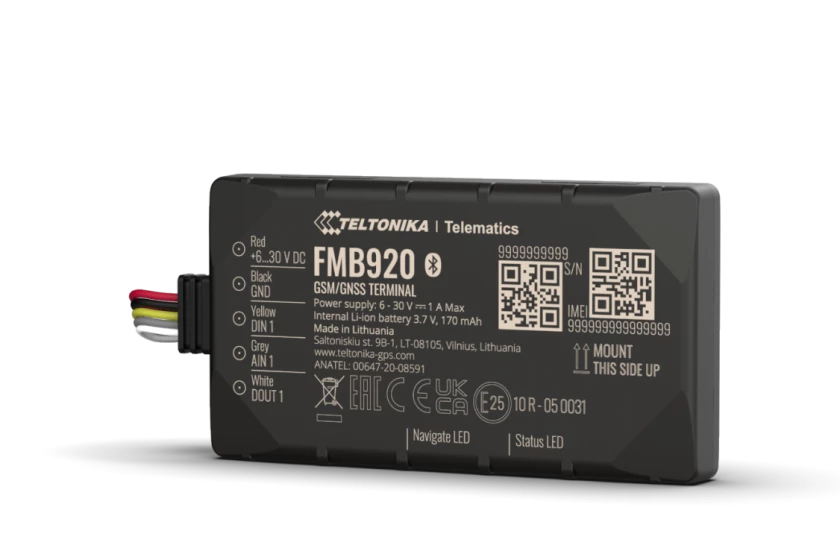

Teltonika FMB920 GPS Tracker
The Teltonika FMB920 is a compact GPS tracker designed for various applications, providing reliable tracking and advanced features for vehicle management.
Key Features:
- Designed for vehicle tracking and fleet management
- Real-time GPS tracking with accurate location updates
- Supports various connectivity options (2G, GSM, GPS)
- Durable and compact design for easy installation
- Geofencing and alert notifications for enhanced security
Use Cases:
- Fleet management for businesses
- Real-time vehicle monitoring
- Security for personal and commercial vehicles
- Regulatory compliance for vehicle tracking
Advantages:
- Reliable performance with real-time tracking
- Seamless integration with fleet management software
- Real-time alerts for operational efficiency
- Cost-effective solution for vehicle monitoring
- 24/7 customer support from QTLoads
Teltonika FMB920 GPS Tracker
A compact and versatile GPS tracker designed for efficient vehicle management.
Detailed Description
The Teltonika FMB920 GPS Tracker provides accurate tracking and diagnostics for vehicles, making it an ideal solution for fleet management and security.
Teltonika FMB920: Compact 2G Tracker for Efficient Fleet Management The Teltonika FMB920 is a versatile 2G GPS tracker designed for fleet management, logistics, and personal vehicle monitoring. With a slim 12mm design, it fits into tight spaces and provides essential functionalities like engine blocking, remote tracking, and data transmission. Its internal high-gain antennas ensure reliable GNSS and cellular connectivity, while Bluetooth support enables integration with external sensors for temperature, humidity, and movement monitoring—an ideal solution for fleet tracking across industries.
Specifications
| Features | Specification |
|---|---|
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Velocity Accuracy | < 0.1 m/s (within +/- 15% error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Input voltage range | 6–30 V DC with overvoltage protection |
| Internal Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Power consumption | At 12V: - < 2 mA (Ultra Deep Sleep) - < 4 mA (Deep Sleep) - < 5 mA (Online Sleep) - < 6 mA (GPS Sleep) - < 25 mA (nominal) |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog inputs | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
| Operating temperature (with battery) | -20 °C to +40 °C |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, MTBF, REACH, Anatel, ICASA |
Features
Extended product usage scenarios
Extensive Remote Monitoring
Eco Drive
Slim Design
Product Comparison
| Model | Input Voltage | Weight | Battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| Teltonika FMB920 | 6–30 V DC with overvoltage protection | 54g | 170 mAh Li-Ion battery (0.63 Wh) | -40°C to +85°C | IP54 |
| Teltonika TFT100 | 6–30 V DC with overvoltage protection | 169g | 1800 mAh Li-Ion battery, 3.7V (6.66Wh) | -20 °C to +75 °C | IP67 |
| Teltonika FMB120 | 10–30 V DC with overvoltage and reverse polarity protection | 55g | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) | -40 °C to +85 °C | IP41 |
| Teltonika FMB209 | 10–30 V DC with overvoltage and reverse polarity protection | 205g | 800 mAh Li-Ion battery (0.49 Wh) | -40 °C to +85 °C | IP67 |
| Teltonika 125 | 10–30 V DC with overvoltage and reverse polarity protection | 52g | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) | -40 °C to +85 °C | IP41 |
