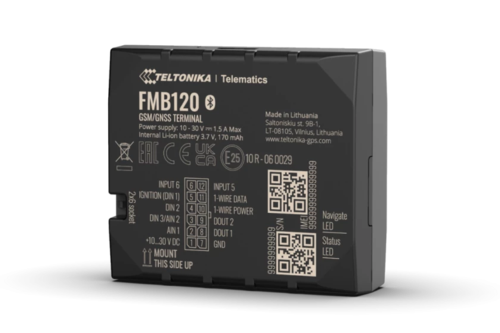

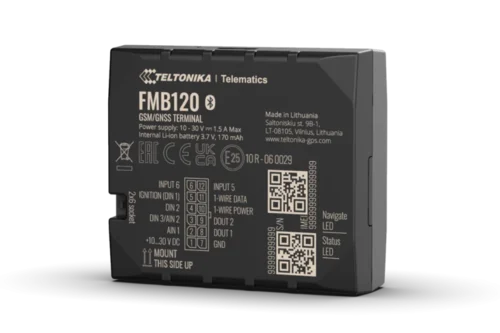

Teltonika FMB120 GPS Tracker
The Teltonika FMB120 is a versatile GPS tracker designed for personal and fleet tracking applications, offering reliable tracking and advanced features.
Key Features:
- Compact and lightweight design for easy installation
- Real-time GPS tracking with accurate location updates
- Supports various connectivity options (2G, GSM, GPS)
- Built-in motion sensor for enhanced tracking capabilities
- Geofencing and alert notifications for increased security
Use Cases:
- Fleet management for businesses
- Personal vehicle tracking
- Theft recovery for vehicles
- Compliance with regulatory requirements for tracking
Advantages:
- Reliable performance with real-time tracking
- Seamless integration with various management software
- Real-time alerts for operational efficiency
- Cost-effective solution for vehicle monitoring
- 24/7 customer support from QTLoads
Teltonika FMB120 GPS Tracker
A versatile GPS tracker designed for personal and fleet applications with advanced features for reliable tracking.
Detailed Description
The Teltonika FMB120 GPS Tracker provides reliable tracking and monitoring capabilities for personal and fleet management, ensuring enhanced security and efficiency.
FMB120: Compact and Versatile Tracking Device The FMB120 is a highly adaptable tracking solution equipped with GNSS, GPRS, and Bluetooth technology, designed for fleet management, logistics, and assets tracking. Its compact design includes an internal high-gain GNSS antenna, allowing for covert installations. Supporting extensive I/O features, including serial data transmission, it excels in vehicle tracking, crash detection, eco-driving, and more. FMB120 also integrates with EYE sensors and beacons, making it a robust choice for smart fleet management across industries, offering real-time monitoring and flexible connectivity options.
Specifications
| Features | Specification |
|---|---|
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Input voltage range | 10–30 V DC with overvoltage and reverse polarity protection |
| Internal Back-up battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Power consumption | At 12V: - < 6 mA (Ultra Deep Sleep) - < 8 mA (Deep Sleep) - < 11 mA (Online Sleep) - < 35 mA (nominal) |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Dimensions | 65 x 56.6 x 18.9 mm (L x W x H) |
| Weight | 55 g |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| Regulatory | CE/RED, EAC, E-Mark, RoHS, REACH, SIRIM QAS |
Features
Extended product usage scenarios
Extensive Remote Monitoring
Eco Drive
Temperature Monitoring
Product Comparison
| Model | Input Voltage | Weight | Battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| Teltonika FMB120 | 10–30 V DC with overvoltage and reverse polarity protection | 55g | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) | -40 °C to +85 °C | IP41 |
| Teltonika TFT100 | 6–30 V DC with overvoltage protection | 169g | 1800 mAh Li-Ion battery, 3.7V (6.66Wh) | -20 °C to +75 °C | IP67 |
| Teltonika FMB920 | 6–30 V DC with overvoltage protection | 54g | 170 mAh Li-Ion battery (0.63 Wh) | -40°C to +85°C | IP54 |
| Teltonika FMB209 | 10–30 V DC with overvoltage and reverse polarity protection | 205g | 800 mAh Li-Ion battery (0.49 Wh) | -40 °C to +85 °C | IP67 |
| Teltonika 125 | 10–30 V DC with overvoltage and reverse polarity protection | 52g | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) | -40 °C to +85 °C | IP41 |
