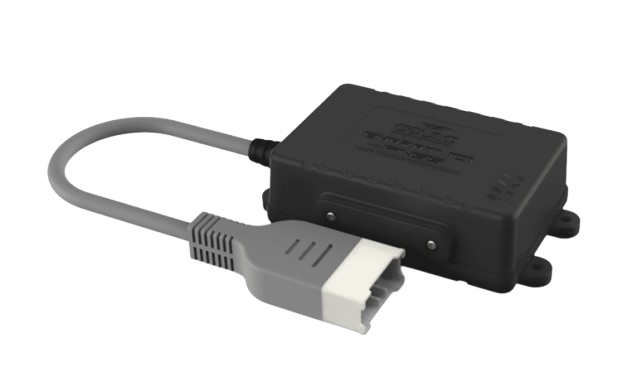

Bharat 101 2G AIS 140 Certified GPS Tracker
An AIS 140 Certified GPS tracker designed to meet Indian government standards for vehicle tracking, ensuring real-time tracking and monitoring for fleet management and compliance.
Key Features:
- AIS 140 certified for compliance with government regulations
- Real-time GPS tracking with 2G connectivity
- Panic button integration for emergency alerts
- Rugged design with IP65 rating for water and dust resistance
- Geofencing, route playback, and speed monitoring
Use Cases:
- Fleet management for commercial vehicles
- Real-time vehicle tracking for public transportation
- Ensuring compliance with government tracking regulations (AIS 140)
- Emergency alert system with panic button for safety
Advantages:
- Compliant with the latest government AIS 140 standards
- Real-time tracking with route playback and geofencing
- Durable design suitable for harsh environments
- Easy integration with fleet management platforms
- 24/7 support from QTLoads

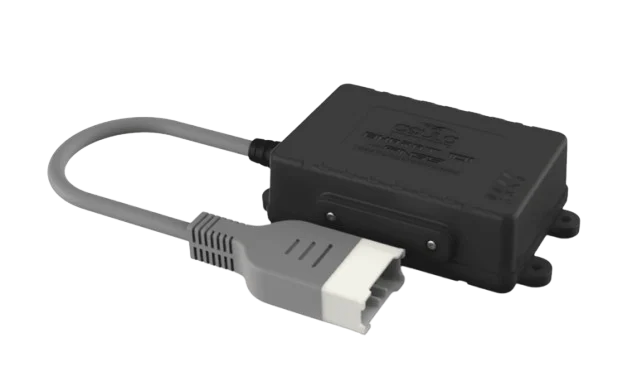

Bharat 101 2G AIS 140 GPS Tracker
A reliable and certified GPS tracker with advanced features for fleet management and compliance with AIS 140 regulations.
Detailed Description
The Bharat 101 2G AIS 140 GPS Tracker offers seamless real-time tracking for commercial fleets, ensuring compliance with Indian government regulations and providing advanced safety features such as panic buttons and emergency alerts.
Bharat101 with IRNSS: India's First AIS 140-Certified Device Bharat101, certified under AIS 140, is the first Indian device to feature IRNSS technology, designed for tracking, fleet management, and real-time monitoring. Its versatile applications span logistics, taxi operations, car/bike rentals, and insurance telematics. With an internal antenna, it supports hidden installations, making it ideal for stealth tracking. Bharat101 offers robust functionality for I/O applications, serial data transmission, and more, providing a powerful solution for smart fleet management in various industries.
Specifications
| Parameters | Specification |
|---|---|
| Chipset | MT6260 |
| Memory | 8 MB solid state Flash, 100K Erase and Program Cycle |
| 10 year data retention | |
| Cellular Module | Quad-Band 850/900/1800/1900 Mhz |
| GNSS Module | GNSS(GNSS+IRNSS)1 acquisition and 48 tracking channels, Ultra high tracking/navigation sensitivity: -163dBm |
| 2.5 M CEP (50%) @-130dBm | |
| Antennae | Internal |
| Communication Interface | TCP/IP |
| Record Storage/Buffer | 40000 Tracking Records |
| Interface | 4 Digital inputs | 2 Digital outputs(Open Drain) | 2 Analog inputs | 1-USB Device type B | RS232/RS485/CAN (Optional) |
| Speed Sensor | GNSS (default) |
| SIM Interface | eSIM (MFF2) |
| GPRS Packet Data | Class 12, Class 10(Optional) Coding Scheme CS1 to CS4 |
| LED Indication | Process, Cellular, GNSS, Power |
| Connectors | 12 Pin connector |
| Power Supply | Wide DC input voltage range (9V - 32V) |
| Current Consumption | <5mA during Sleep Mode |
| Internal Battery | 850mAh, 6hrs Backup* |
| Enclosure | ABS plastic casing with IP65 rating |
| Temperature | Operating: -25°C to +85°C |
| Dimension | 120mm x 68mm x 34mm |
| Weight | ~206g |
| FOTA | Firmware upgrade Over The Air available |
| Motion Sensor | Accelerometer & Gyroscope |
Features
IP67 rating - dustproof & waterproof
AIS 140 Certification

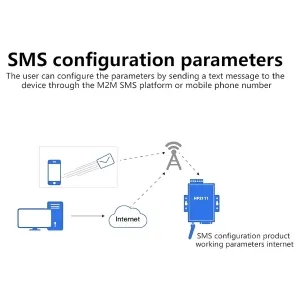

All Parameter Configuration through SMS & USB
Main Battery Removal Alert
Easy Installation and Configuration

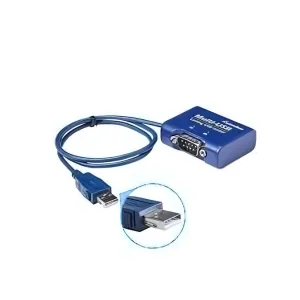

1 RS232, 1 USB Port
Long Battery Backup up to 6 hrs with inbuilt 850mAh Battery
2 Analog Inputs, 4 Digital Inputs & 2 Digital Outputs
Data Storage With Storage Capacity Of 40000 Records
Remote Health Checking Through SMS
Low power consumption & power optimization
Motion Sensor, Accelerometer, Gyroscope
Product Comparison
| Model | Input Voltage | Weight | Battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| Bharat 101 2G | Wide DC input voltage range (9V - 32V) | ~206g | 850mAh, 6hrs Backup* | Operating: -25°C to +85°C | IP67 |
| Bharat 101 4G | 8-32V DC | 100g | 850mAH | ISO 16750-4, Clause 5.1.2.2/td> | IP67 |
| TS 101 EV_CAN | Wide DC input voltage range (9V - 32V). (Optional 9V-90V for EV Support ) | ~134g | 600mAh, 3 to 5 Hr backup | Operating: -25°C to +85°C | IP65 |
