Queclink GV56 GPS Tracker
A compact and robust GPS tracker with advanced tracking features for both personal and business applications.
Key Features:
- Real-time GPS tracking with high precision
- Lightweight and portable design
- Extended battery life for long-term usage
- IP67 rating for water and dust resistance
- Geofencing and motion alerts for enhanced security
Use Cases:
- Fleet management and vehicle tracking
- Personal safety for children and elderly
- Assets protection for valuable goods
- Adventure tracking for outdoor activities
Advantages:
- Simple setup and operation, no expertise needed
- Cost-effective subscription plans
- Access real-time data via a user-friendly app
- 24/7 customer support from QTLoads
Queclink GV56 GPS Tracker
Compact and robust GPS tracker with advanced tracking features for reliable performance.
Detailed Description
The Queclink GV56 GPS Tracker is designed for optimal tracking efficiency, ensuring you always have your assets under surveillance.
The GV56 is a cost-effective GNSS tracker designed for a wide range of basic tracking applications. The model has a 1-wire interface used to support either 1-wire temperature sensor or iButton driver ID. Its built-in Bluetooth can be used for both data and voice transmission.
Specifications
| General Specifications | Details |
|---|---|
| Dimensions | 79.5 x 44.3 x 11.9mm 3.13” (L) x 1.74” (W) x 0.47” (H) |
| Weight | 55g |
| Operating Voltage | 8V to 32V DC |
| Operating Temperature | -30℃ ~ +80℃ -40℃ ~ +80℃ for storage |
| Backup Battery | Li-Polymer, 170 mAh |
| Standby Time | Without reporting: 45 hours 5 minutes’ reporting: 30 hours 10 minutes’ reporting: 35 hours |
| Bluetooth | Support Bluetooth 3.0 (two-way voice communication) & BLE 4.0 |
| GSM Specifications | Details |
| Frequency | Quad band GSM/GPRS 850 / 900 / 1800 / 1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 900/850 MHz) -Class 1 (1W @ 1800/1900 MHz) |
| GPRS | GPRS multi-slot class 10 , GPRS mobile station class B |
| RMS Phase Error | 5 deg |
| Max RF Output Power | GSM850/GSM900: 33.0±2 dBm; DCS1800/PCS1900: 30.0±2 dBm |
| Dynamic Input Range | -15 ~ -108 dBm |
| Receiver Sensitivity | Class II RBER 2% (-107 dBm) |
| Stability of Frequency | < 2.5 ppm |
| GNSS Specifications | Details |
| GNSS Type | MTK GNSS receiver |
| Sensitivity | Autonomous: -148 dBm Hot start: -163 dBm Tracking: -165 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.5m |
| TTFF (Open Sky) | Cold start: 32s average; Warm start: 30s average; Hot start: 1s average |
| GNSS Type | MTK GNSS receiver |
| Interfaces | Details |
| Digital Inputs | 1 positive trigger input for ignition detection or other positive trigger detection |
| Digital Output | 1 digital output, open drain, 150 mA max drive current |
| Analog Input | 1 analog input (0V-30V) |

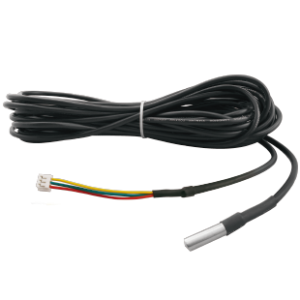

| 1-wire Interface | Support 1-wire temperature sensor and iButton driver ID |
| GSM Antenna | Internal only |
| GNSS Antenna | Internal only |
| Bluetooth Antenna | Internal only |
| LED Indicators | CELL, GNSS |
| Air Interface Protocol | Details |
| Transmit Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage, or a combination of these settings |
| Geo-fences | Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions |
| Power On Report | Report when the device is powered on |
| Special Alarm | Special alarm based on digital inputs |
| Remote Control | OTA control of digital outputs |
| Motion Detection | Motion alarm based on internal 3-axis accelerometer |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including harsh braking, acceleration, etc. |
| Jamming Detection | Alarm based on jamming detection |
| Crash Detection | Accident data collection for reconstruction and analysis |
| Tow Alarm | Alarm for tow event in ignition-off state |
Features

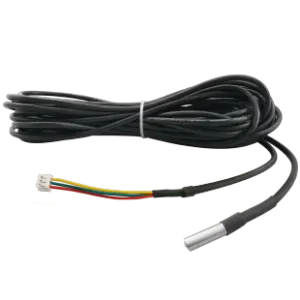

1-Wire

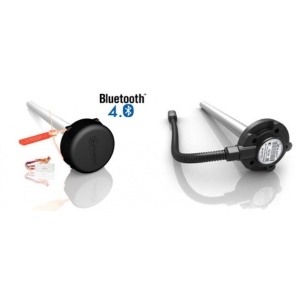

Bluetooth 3.0 & BLE 4.0
OTA Control

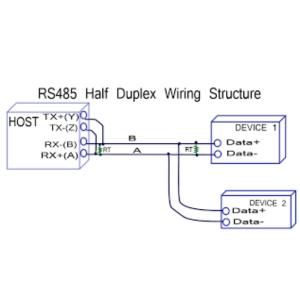

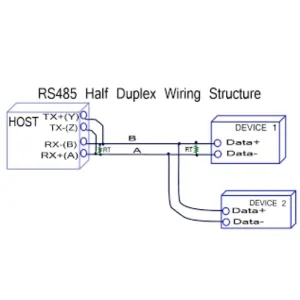

Half Duplex RS485 Serial Port

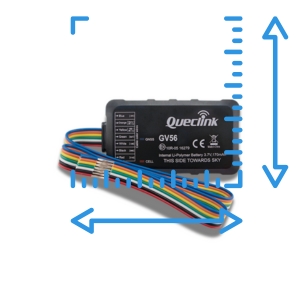

Compact Size
Geo-Fence Alarms
Motion Detection
Driving Behavior Monitoring
Ignition Detection
Emergency Alarm
Tow Alarm
Fuel Monitoring and Cut-Off
Crash and Tow Detection
ANTI-THEFT
ANTI-JAMMER
Product Comparison
| Model | Input Voltage | Weight | battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| GV56 | 8V to 32V DC | 55g | Li-Polymer, 170 mAh | -30℃ ~ +80℃ -40℃ ~ +80℃ for storage |
IP67 |
| GV305CEU | 8V to 32V DC | 92g | Li-Polymer, 250 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP66 |
| GV50CME | 9 ~ 90V DC | 71.5g | Li-Polymer, 190 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP67 |
