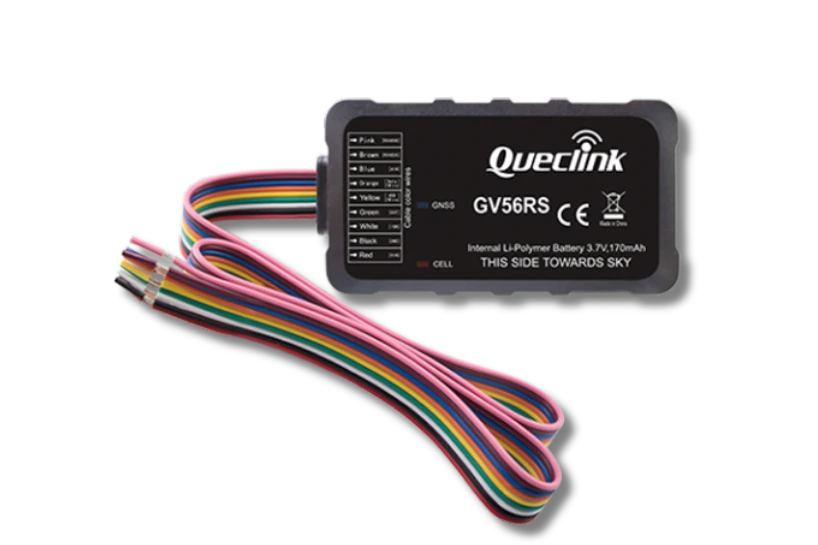

Queclink GV56RS GPS Tracker
The GV56RS is a compact, cost-effective GNSS tracker with multi-interface support and Bluetooth functionality. Ideal for vehicle tracking, it ensures reliable real-time monitoring for fleet management, stolen vehicle recovery, and personal use. With features like motion detection, geo-fencing, and emergency alarms, the GV56RS delivers robust performance in a small form factor.
Key Features:
- Bluetooth 3.0 & BLE 4.0 for data and voice transmission
- Supports multiple I/O interfaces, including RS485 and 1-wire interface
- Autonomous positioning accuracy of < 2.5m
- Internal GSM, GNSS, and Bluetooth antennas
- Geo-fencing, motion detection, and ignition alerts
- Scheduled timing reports and OTA control
Use Cases:
- Stolen vehicle recovery and fleet management
- Real-time tracking for high-value goods and assets
- Personal safety tracking for individuals
- Outdoor activity and adventure tracking
Advantages:
- Compact size with easy installation
- Cost-effective with flexible subscription plans
- Real-time updates through a mobile-friendly app
- 24/7 customer support for troubleshooting
Queclink GV56RS GPS Tracker
A compact and versatile GNSS tracker designed for a wide range of vehicle tracking applications, offering seamless performance and robust features.
Detailed Description
The Queclink GV56RS is a compact, high-performance GNSS tracker designed for real-time monitoring in vehicle tracking, fleet management, asset protection, and personal safety. With Bluetooth 5.0, LTE support, and compatibility with GPS and Beidou, it delivers precise location data in any environment.
Its IP66-rated waterproof design ensures durability, while features like motion detection, geo-fencing, SOS alarms, crash detection, and driver behavior monitoring offer enhanced safety and control. The GV56RS is ideal for stolen vehicle recovery, adventure tracking, and professional fleet use.
With low power consumption and seamless mobile/web integration, it provides continuous, real-time tracking and alerts making it a cost-effective and reliable choice for both personal and business applications.
Specifications
| General Specifications | Details |
|---|---|
| Dimensions | 79.5 (L) × 44.3 (W) × 11.9 (H) mm |
| Weight | 62 g |
| Backup Battery | Li-Polymer, 170 mAh |
| Operating Voltage | 8 ~ 32V DC |
| Operating Temperature | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
| Buffer Messages | Up to 10,000 buffer messages |
| Bluetooth | Bluetooth 5.0 |
| LTE Specifications | Details |
| Operating Band | LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data Transmission | LTE-FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL) |
| GSM Specifications | Details |
| Frequency | 900 / 1800 MHz |
| Data Transmission | EDGE: (DL) 236.8 Kbps / (UL) 236.8 Kbps GPRS: (DL) 85.6 Kbps / (UL) 85.6 Kbps |
| GNSS Specifications | Details |
| GNSS Type | High-precision GNSS receiver |
| Constellation Support | GPS, Beidou |
| Sensitivity | Cold start: -147 dBm Hot start: -155 dBm Tracking: -160 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.0 m |
| TTFF (Open Sky) | Cold start: 28 seconds average Hot start: 1 second average |
| Interfaces | Details |
| Digital Input | 1 x positive trigger input for ignition detection |
| Configurable Input | 1 x configurable input for analog input (0V ~ 16V) or negative input |
| Latched Digital Output | 1 x digital output with one internal latch circuit, open drain, 150 mA max drive current |
| Cellular Antenna | Internal only |
| GNSS Antenna | Internal only |
| LED Indicators | Internal only |
| Micro USB Interface | Used for configuration, upgrade, and debugging |
| Air Interface Protocol | Details |
| Transmission Protocol | TCP, UDP, SMS |
| Scheduled Report | Report position and status based on preset time intervals, distance, mileage, or a combination of these settings |
| Geo-fences | Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions |
| Speed Alarm | Flexible speed monitoring for unusual speed alarm |
| Low Power Alarm | Alarm when backup battery is low |
| Power On Report | Report when the device is powered on |
| Tow Alarm | Alarm for tow event in ignition-off state |
| Driving Behavior Monitoring | Aggressive driving behavior detection, including harsh braking, acceleration, etc. |
| Crash Detection | Accident data collection for reconstruction and analysis |
| Remote Control | OTA control of digital outputs |
| SOS Alarm | Alarm message report triggered by panic button in emergency situation |
| Virtual Ignition Detection | Based on voltage and accelerometer |
| Jamming Detection | Alarm based on jamming detection |
Features
OTA Control
BLE 3.0 & 4.0
Geo-Fence Alarms
Tow Alarm
SPEED ALARM
Driving Behavior Monitoring
Crash and Tow Detection
Emergency Alarm
Fuel Monitoring and Cut-Off
Ignition Detection
ANTI-THEFT
ANTI-JAMMER
Product Comparison
| Model | Input Voltage | Weight | battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| GV56RS | 9 ~ 90V DC | 71.5g | Li-Polymer, 190 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP67 |
| GV56 | 8V to 32V DC | 55g | Li-Polymer, 170 mAh | -30℃ ~ +80℃ -40℃ ~ +80℃ for storage |
IP67 |
| GV305CEU | 8V to 32V DC | 92g | Li-Polymer, 250 mAh | -30℃ ~ +70℃ -40℃ ~ +80℃ for storage |
IP66 |
