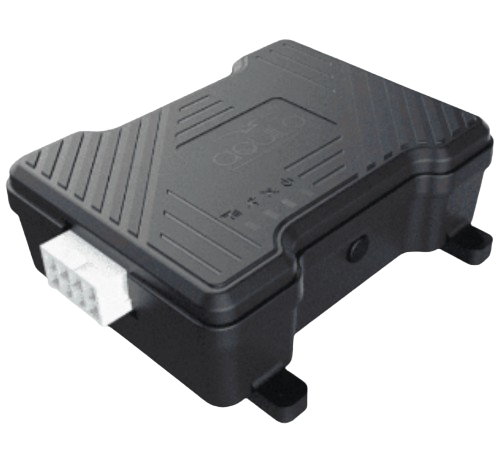

TS 101 EV_CAN GPS Tracker
The TS 101 EV_CAN is an advanced GPS tracker specifically designed for electric vehicles, offering robust tracking and monitoring capabilities for fleet management and vehicle security.
Key Features:
- Compatible with electric vehicles for precise tracking
- Real-time GPS tracking with accurate location data
- Integrated CAN Bus for vehicle diagnostics and monitoring
- Compact and easy to install
- Geofencing and alert functionalities for enhanced security
Use Cases:
- Electric vehicle fleet management
- Real-time vehicle diagnostics and performance monitoring
- Enhancing security for personal and commercial electric vehicles
- Regulatory compliance for electric vehicle tracking
Advantages:
- Optimized for electric vehicles with comprehensive diagnostics
- Seamless integration with fleet management software
- Real-time alerts for improved operational efficiency
- Cost-effective solution for electric vehicle monitoring
- 24/7 customer support from QTLoads
TS 101 EV_CAN GPS Tracker
An advanced GPS tracker designed for electric vehicles with CAN Bus support for diagnostics.
Detailed Description
The TS 101 EV_CAN GPS Tracker is specifically designed for electric vehicles, offering real-time tracking and diagnostics through its integrated CAN Bus system, ensuring efficient fleet management and security.
TS101 Basic EV CAN: A Powerful Vehicle Tracking Solution TS101 Basic EV CAN is a resilient, compact device equipped with CAN capability, designed for electric vehicles and fleet management. With its AIS 140 certification, it offers advanced tracking, multiple I/O ports, and an IP65-rated durable casing. The device supports a wide power range of 9-90 V and can store up to 6,000 tracking records, making it ideal for comprehensive fleet oversight. Whether for logistics, fleet tracking, or electric vehicle management, the TS101 ensures efficiency and security across various industries.
Specifications
| Parameters | Specification | ||
|---|---|---|---|
| Chipset | MT2503D | ||
| Memory | 4 MB solid state Flash, 100K Erase and Program Cycle, 10 year data retention | ||
| Cellular Module | Quad-Band 850/900/1800/1900 Mhz | ||
| GNSS Module | GNSS+GLONAS: 99 acquisition/ 33 tracking channels, Tracking sensitivity: -165dBm | ||
| 2.5 M CEP (50%) | |||
| Antenna | Internal | ||
| Communication Interface | TCP/IP | ||
| Record Storage/buffer | 6000 Tracking Records. (may vary based on configuration and paremeter chosen) | ||
| Interface | 1 Ignition Input, 2 Digital Input, 1 Analog Input, 1 Digital output (open drain), 1 CAN | ||
| Speed Sensor | GNSS | ||
| SIM Interface | Plastic (4FF-Nano) | ||
| GPRS Packet Data | Class 12 ; Coding Scheme CS1 to CS4 | ||
| LED Indication | Process, Cellular, GNSS, Power | ||
| Connectors | 8 Pin connector | ||
| Power Supply | Wide DC input voltage range (9V - 32V). (Optional 9V-90V for EV Support ) | ||
| Current Consumption | < 15mA during sleep mode | ||
| Internal Battery | 600mAh, 3 to 5 Hr backup | ||
| Enclosure | ABS plastic casing with IP65* rating | ||
| Temperature | Operating: -25°C to +85°C | ||
| Dimension | 95x84x31 mm | ||
| Weight | ~134g | ||
| FOTA | Firmware upgrade over the air available | ||
| Bluetooth | BT 3.0 Classic (Optional) | ||
| Motion Sensor | Accelerometer | ||
Features
IP65 rating
AIS 140 Certification

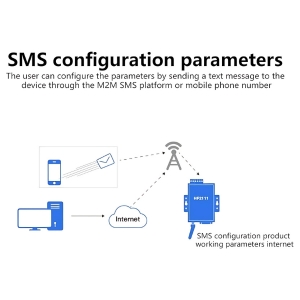

All Parameter Configuration through SMS & USB
Main Battery Removal Alert
Easy Installation and Configuration
1 RS232, 1 USB Port
Long Battery Backup up to 4-5 hrs with inbuilt 600mAh Battery
1 Analog Inputs, 2 Digital Inputs & 1 Digital Outputs
Data Storage With Storage Capacity Of 60000 Records
Remote Health Checking / Diagnostics Through SMS
Low power consumption & power optimization
Motion Sensor, Accelerometer, Gyroscope
Product Comparison
| Model | Input Voltage | Weight | Battery | Operating Temperature | Water Resistance |
|---|---|---|---|---|---|
| TS 101 EV_CAN | Wide DC input voltage range (9V - 32V). (Optional 9V-90V for EV Support ) | ~134g | 600mAh, 3 to 5 Hr backup | Operating: -25°C to +85°C | IP65 |
| Bharat 101 4G | 8-32V DC | 100g | 850mAH | ISO 16750-4, Clause 5.1.2.2/td> | IP67 |
| Bharat 101 2G | Wide DC input voltage range (9V - 32V) | ~206g | 850mAh, 6hrs Backup* | Operating: -25°C to +85°C | IP67 |
